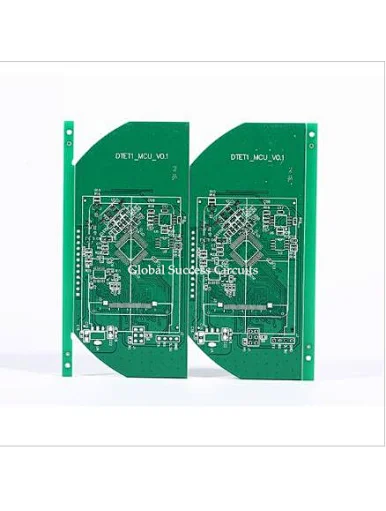

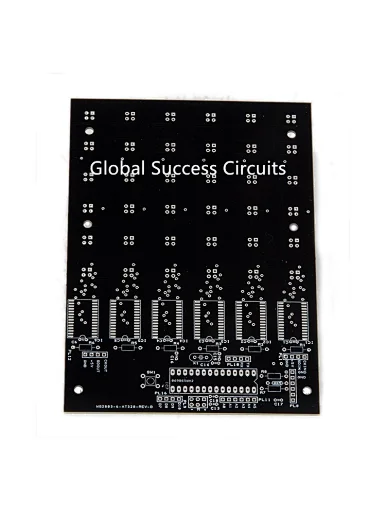

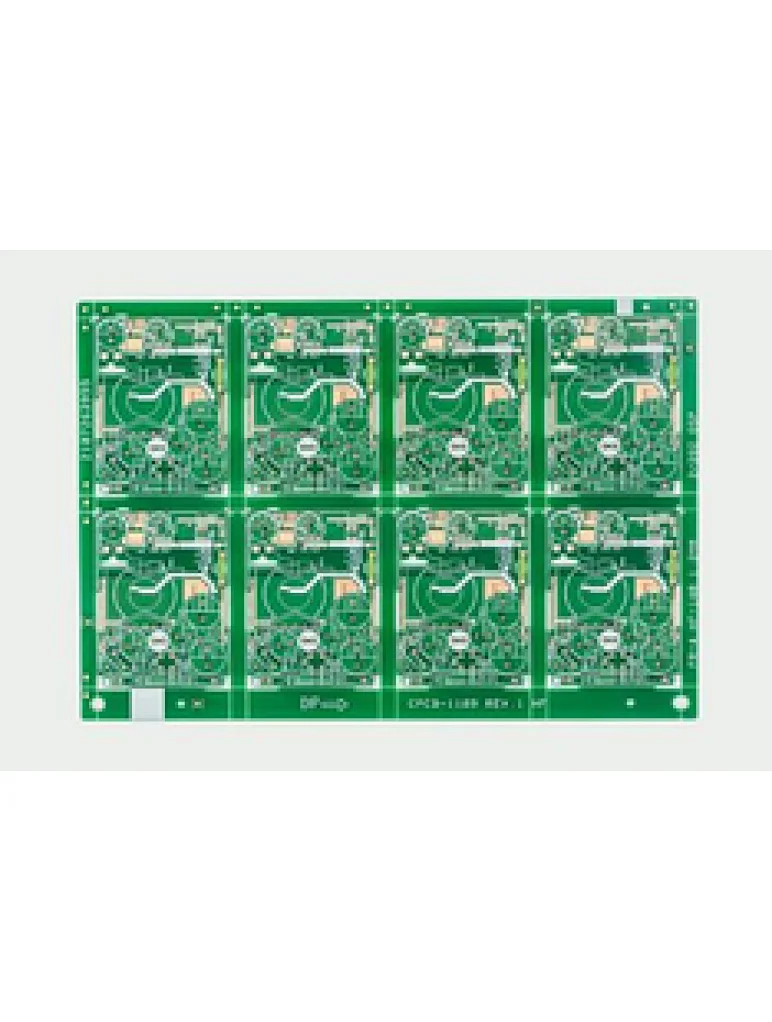

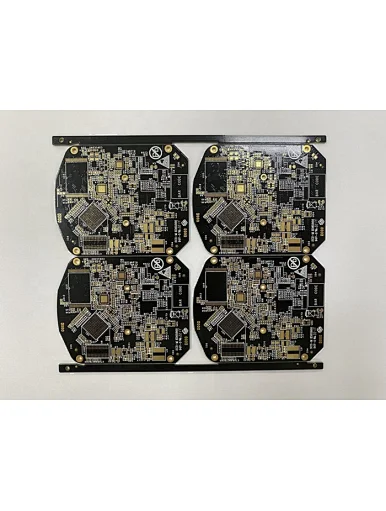

pcb manufacturing plant
pcb manufacturing plant
Quantity
1. The types of PCB covers single side pcb, double side board, aluminum pcb, HF PCB, RF PCB, thick cooper, HDI board...
2. 18+ years pcb manufacturing plant with three factories and 1500+ employees,pcb export to over 80 countries.
3. TOP 60 Chinese PCB circuit board factory &Tesla's approved supplier
4. Full certifications with sound quality &management systems, ISO9001, IATF16949, ISO14001, 45001, QC080000, UL, ROHS, REACH, ect.
5. Professional service from quote to deliver, within 12 hours quote + CAM engineering + quick&stable delivery time + complete logistics support.
3. TOP 60 Chinese PCB circuit board factory &Tesla's approved supplier
4. Full certifications with sound quality &management systems, ISO9001, IATF16949, ISO14001, 45001, QC080000, UL, ROHS, REACH, ect.
5. Professional service from quote to deliver, within 12 hours quote + CAM engineering + quick&stable delivery time + complete logistics support.
| Category | Description | Capability |
| Laminate Material | FR4, High TG FR4(tg150,tg170,tg180) Halogen-free FR4, CEM1, CEM3,Polyimide, Rogers ,Aluminum | We will order other special material accoprding to your request |
| Board Layers | Maximum layers | 1-18layers |
| Size | Maximum finished dimensions | 500*1200mm |
| Board Thickness | Minimum and Maximum | 0.2-3.2mm |
| Copper | Outer copper weight | 0.5oz (17um) - 4oz (140um) |
| Inner copper weight | 0.5oz (17um) - 4 oz (105um) | |
| Drilling | Minimum drilling size | 0.15mm |
| Drill Deviation (True position size) | 2mil (0.050mm) | |
| PTH hole tolerance | 3mil (0.075mm) | |
| N-PTH hole tolerance | 2mil (0.050mm) | |
| Minimum hole wall thickness | 20um | |
| Angle of Countersink | 80°, 90°, 100°, 120° | |
| Circuit line | Minimum width | 0.1mm/ 4mil |
| Minimum space | 0.1mm/ 4mil | |
| Inner Layers | Minimum space from drilling to inner pattern | 6mil (0.15mm) |
| Minimum space from annular ring to inner pattern | 6mil (0.15mm) | |
| Layer-to-layer registration | 3mil (0.08mm) | |
| Board Profilling | Hole to board edge tolerance | ±4mil (0.1mm) |
| Pattern to board edge tolerance | ±4mil (0.1mm) | |
| CNC Tolerance | ±4mil (0.1mm) | |
| Minmum thickness after V-Cut | 12mil (0.3mm) | |
| V-Cut tolerance | ±5mil (0.12mm) | |
| V-Cut Angle | 20,30,45,60 | |
| Solder mask | Color | green, light green, matte green, white black,matte black,yellow,red, blue |
| Thickness | ≥17um | |
| Silkscreen | Color | White, black, yellow, red, blue, green, gray |
| Minimum line height | ≥0.0625mm | |
| Minimum line width | ≥0.125mm | |
| Surface Finish | HASL, HASL pb free, immersion gold, immersion silver, O.S.P | |
| Certification | IPC-A-600 Class II/III, UL E324220, ISO 9001,ISO/TS16949, ROHS | |
