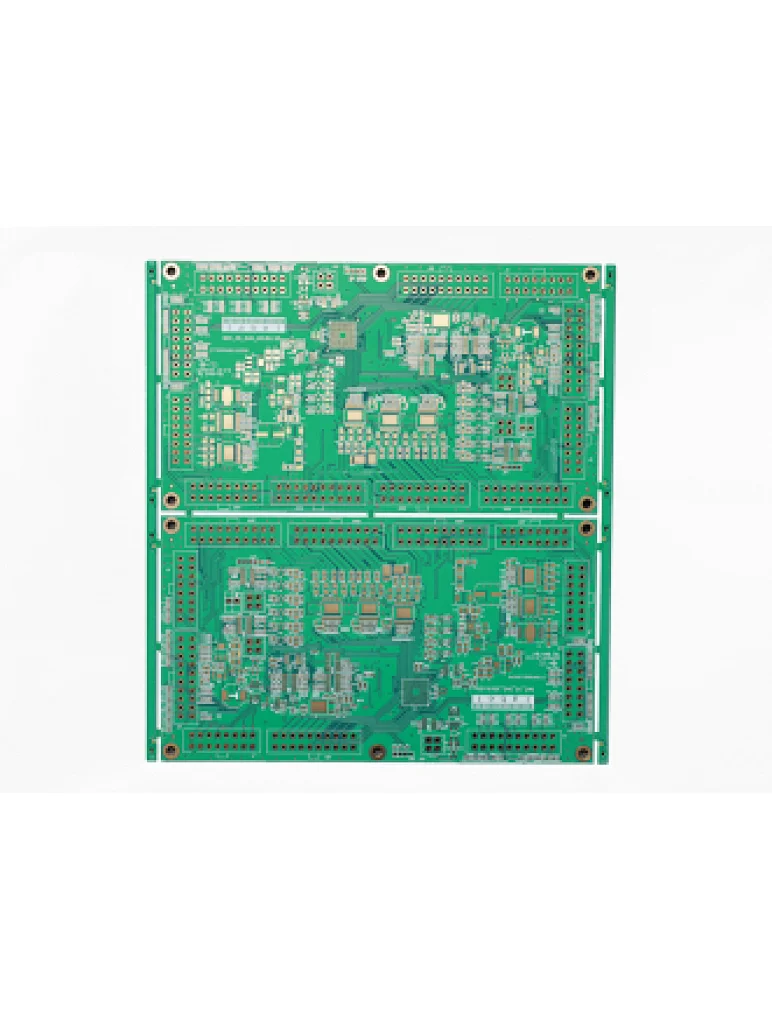

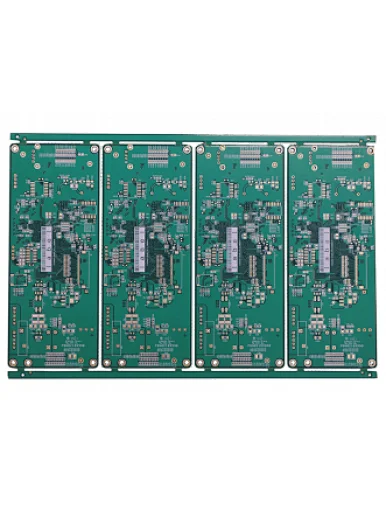

| Category | Description | Capability | | Laminate Material | FR4, High TG FR4(tg150,tg170,tg180)
Halogen-free FR4, CEM1, CEM3,Polyimide,
Rogers ,Aluminum | We will order other special material accoprding to your request | | Board Layers | Maximum layers | 1-18layers | | Size | Maximum finished dimensions | 500*1200mm | | Board Thickness | Minimum and Maximum | 0.2-3.2mm | | Copper | Outer copper weight | 0.5oz (17um) - 4oz (140um) | | Inner copper weight | 0.5oz (17um) - 4 oz (105um) | | Drilling | Minimum drilling size | 0.15mm | | Drill Deviation (True position size) | 2mil (0.050mm) | | PTH hole tolerance | 3mil (0.075mm) | | N-PTH hole tolerance | 2mil (0.050mm) | | Minimum hole wall thickness | 20um | | Angle of Countersink | 80°, 90°, 100°, 120° | | Circuit line | Minimum width | 0.1mm/ 4mil | | Minimum space | 0.1mm/ 4mil | | Inner Layers | Minimum space from drilling to inner pattern | 6mil (0.15mm) | | Minimum space from annular ring to inner pattern | 6mil (0.15mm) | | Layer-to-layer registration | 3mil (0.08mm) | | Board Profilling | Hole to board edge tolerance | ±4mil (0.1mm) | | Pattern to board edge tolerance | ±4mil (0.1mm) | | CNC Tolerance | ±4mil (0.1mm) | | Minmum thickness after V-Cut | 12mil (0.3mm) | | V-Cut tolerance | ±5mil (0.12mm) | | V-Cut Angle | 20,30,45,60 | | Solder mask | Color | green, light green, matte green, white black,matte black,yellow,red, blue | | Thickness | ≥17um | | Silkscreen | Color | White, black, yellow,
red, blue, green, gray | | Minimum line height | ≥0.0625mm | | Minimum line width | ≥0.125mm | | Surface Finish | HASL, HASL pb free, immersion gold, immersion silver, O.S.P | | Certification | IPC-A-600 Class II/III, UL E324220, ISO 9001,ISO/TS16949, ROHS | |
|
